Expanded Metal Y Strainer

Home Products Plate Mesh Expanded Metal Mesh Expanded Metal Y Strainer
Expanded Metal Y StrainerExpanded Metal Y StrainerExpanded Metal Y StrainerExpanded Metal Y Strainer

Expanded Metal Y Strainer

  • Product Item:Expanded strainer
  • Material: SUS/AISI 304/316,304L,316L
  • Hope Shape: Diamond
  • Cylinder Shape: Straight Cylinders,Conical Cylinders,etc.
  • This is a filter cylinder fabricated with expanded metal mesh,rolled and welded into straight cylinders or conical cylinders.
  • Category:Expanded Metal Mesh
  • Inquiry Send Email

    Description

    Expanded Metal Mesh Y Strainer

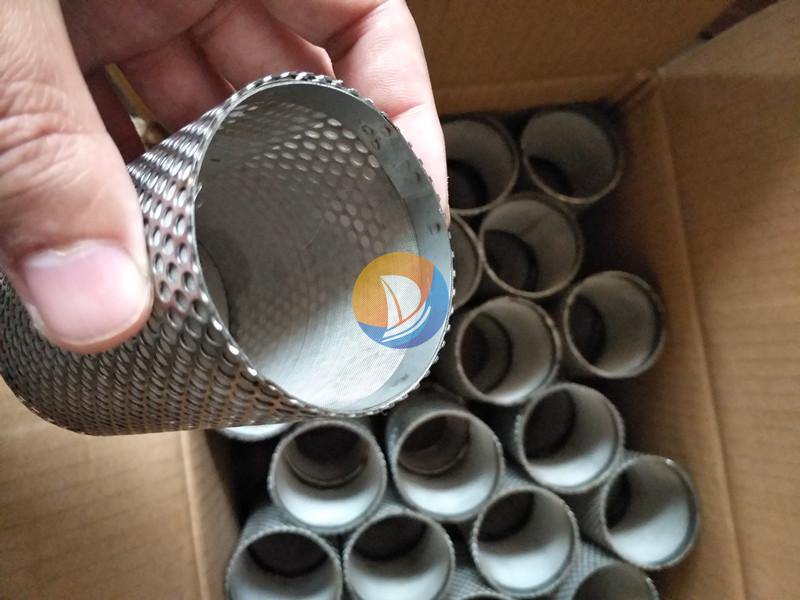

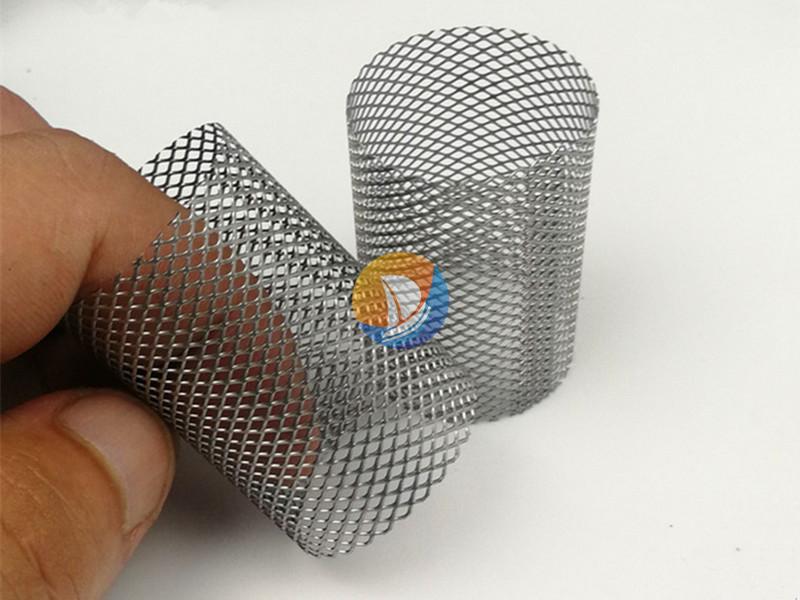

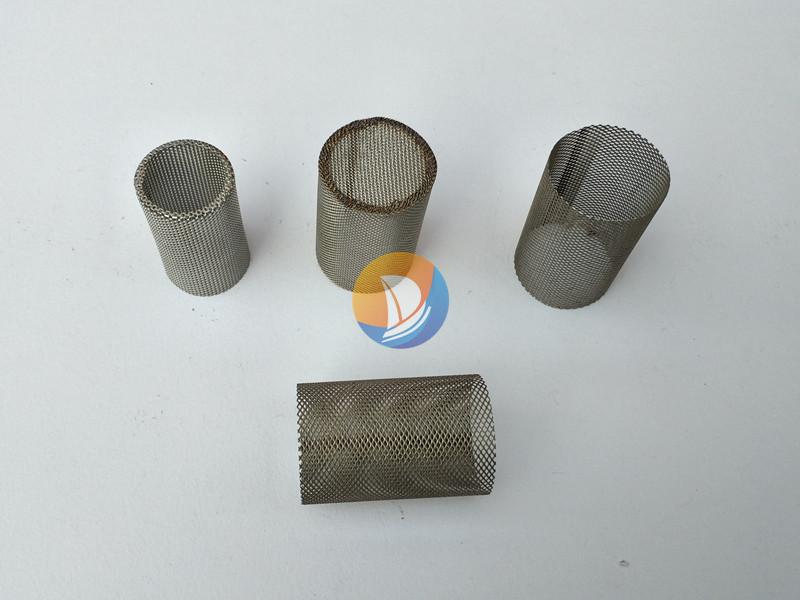

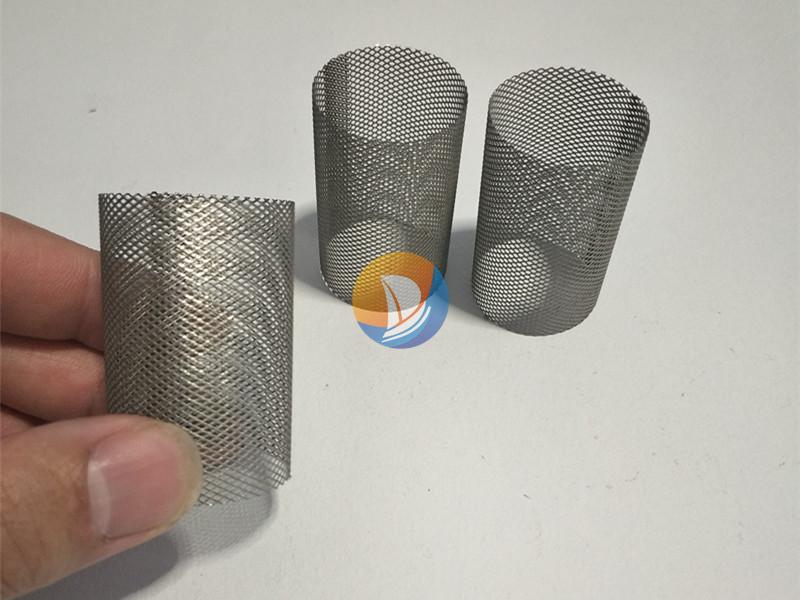

    Y strainer screen is a  filter cylinder fabricated with expanded metal mesh,rolled and welded into straight cylinders or conical cylinders.It is normally used in Y type valves filtration.

    Specification
    Material: SUS/AISI 304/316,304L,316L
    Hope Shape: Diamond;
    Cylinder Shape: Straight expanded metal mesh cylinders,Conical expanded metal mesh cylinders,etc.

    Application
    It is applicable to water pipeline filtration,valve screen,sanitary ware,petroleum,chemical,pharmaceutical,environmental protection,electronics,crafts,mine screen,paper,mechanical,hydraulic,protection,filtration,marine,aviation,aerospace,daily necessities and other departments and high-tech research fields.

    Micro Expanded Metals Specification
    SWM LWM Strand Thick Strand Width Width Material Min Qty
    0.50mm 0.70mm 0.05mm 0.10-0.15mm 70-100mm 304/316 10m2
    0.60mm 0.80mm 0.08-0.10mm 0.15-0.20mm 100-200mm 304/316 10m2
    0.70mm 1.00mm 0.10-0.15mm 0.15-0.20mm 100-200mm 304/316 10m2
    0.70mm 1.25mm 0.10-0.20mm 0.15-0.25mm 100-250mm 304/316 10m2
    0.90mm 1.50mm 0.10-0.30mm 0.20-.30mm 100-300mm 304/316 10m2
    0.90mm 1.50mm 0.20-0.40mm 0.20-0.40mm 100-300mm Aluminium 10m2
    1.00mm 2.00mm 0.15-0.40mm 0.15-0.5mm 150-300mm 304/316 10m2
    1.40mm 2.00mm 0.15-0.50mm 0.15-0.50mm 150-500mm 304/316 10m2
    1.50mm 2.50mm 0.20-0.50mm 0.20-0.50mm 150-500mm 304/316 10m2
    2.00mm 3.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    2.20mm 3.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    2.40mm 3.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    2.40mm 3.50mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    2.40mm 4.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    3.00mm 5.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    3.00mm 6.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    4.00mm 6.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    4.00mm 8.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    5.00mm 10.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    7.00mm 12.50mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    8.00mm 16.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
    10.00mm 20.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2

    Tags: Expanded Metal Y strainer,Y strainer screen
