Description
Twill reverse dutch woven wire mesh is also known as automatic mesh belt continuous screen changer or stainless steel filter ribbon,used for polymer melt filtration in every segment of plastic processing include blown film,blow molding,sheet and film extrusion,filaments and fibers,pipe and profile,pelletizing,BIAX(Bopp & Bops).The difference of twill reverse dutch weaving compared with standard dutch weave lies in the thicker warp wires and less weft wires.
Specification
Material: Stainless steel 302 304 304L 316 316L or copper wires;
Roll width: 67mm,95mm,97mm,127mm,133mm,150mm,157mm,300mm,400mm,etc.

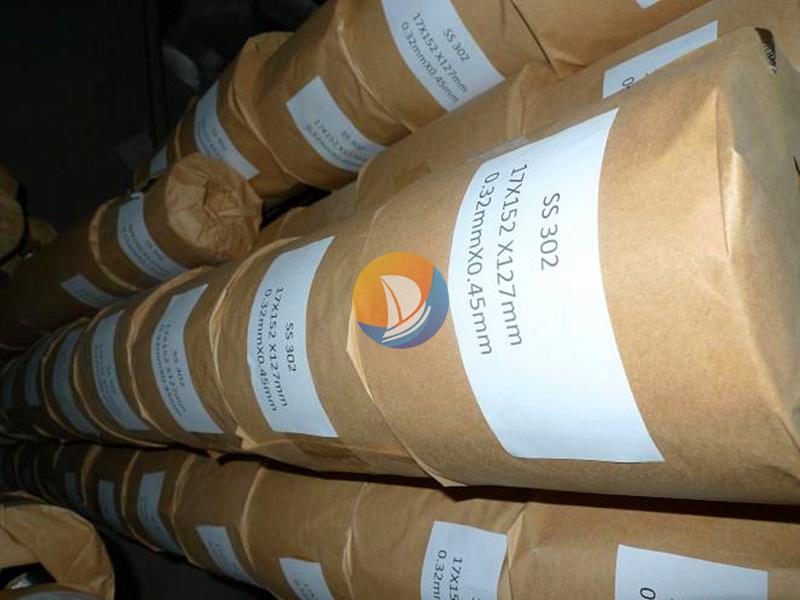

Roll length: 10 meters or 20 meters as standard.
| Mesh Count | Wire Diameter(mm) | Width(cm) | Weight(kg/m2) |
| 170 x 17 | 0.27 x 0.45 | 9-40 | 4.00 |
| 120 x 15 | 0.35 x 0.45 | 9-40 | 4.30 |
| 150 x 17 | 0.30 x 0.45 | 9-40 | 4.20 |
| 260 x 40 | 0.15 x 0.25 | 9-40 | 2.00 |
| 200 x 40 | 0.17 x 0.27 | 9-40 | 2.10 |
| 180 x 18 | 0.27 x 0.45 | 9-40 | 4.00 |
| 132 x 17 | 0.32 x 0.45 | 9-40 | 4.20 |
| 152 x 24 | 0.27 x 0.40 | 9-40 | 3.80 |
| 72 x 15 | 0.45 x 0.55 | 9-40 | 5.00 |
Filter for plastic,rubber,oil industry.
High tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
Plasma and laser cut parts to help prevent edges wire fraying.
Tags:Twill Reverse Dutch Weave Wire Mesh,Dutch Woven Wire Cloth
